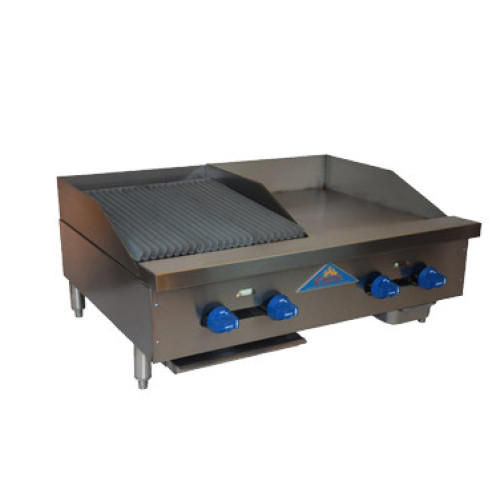

Comstock Castle FHP36-18-1.5RB-P 36 inch wide Countertop (2)left Burner(s) Radiant-Broiler/(2)Right Burner(s) Griddle Combination, Liquid Propane(LP), 76K Total BTU/hr, NSF Listed

Comstock Castle FHP36-18-1.5RB-P 36 inch wide Countertop (2)left Burner(s) Radiant-Broiler/(2)Right Burner(s) Griddle Combination, Liquid Propane(LP), 76K Total BTU/hr, NSF Listed

LIQUID PROPANE RADIANT-BROILER/GRIDDLE COMBINATION Model No: FHP36-18-1.5RB-P

From the Mnufacturer

Ordering Lead times: ship in ~2 weeks

Char-Broiler/Griddle Combination, countertop, gas, 36" wide x 28" deep frame, (1) 18" x 21" broiler area, cast iron grates, sloped or flat, lava rock with cast iron bottom grates, (1) 18" x 21" x 3/4" thick griddle plate, stainless steel splash guards on 3 sides, stainless steel exterior, 4" stainless steel legs, (4) manual controls, 76,000 BTU, NSF, ETL

CONSTRUCTION:

Easy cleaning, corrosion resistant stainless steel f inish, welded with angle iron and aluminized inner framing. Sturdy 5˝ heavy duty stainless pipe legs with adjustable feet. Stainless steel bullnose rail is functional on which to set plates or utensils and also serves as control protection. Double wall construction with heavy insulation for cooler operation. Installation clearances for non-combustible surfaces are 0˝ on the sides and 4˝ in the rear. Char-broilers are approved for use in non-combustible locations only.

CONTROLS:

Equipped with brass gas valves and automatic standing pilots. Pressure regulators are set at the factory for the gas specified. Optimal pressures are 4˝ WC for natural gas and 10˝ WC for propane. Manifold size is ¾˝ NPT. A l controls are tested and confirmed in good working order. Calibration and adjustments are the responsibility of the installer.

BURNERS:

12˝ incremental griddle & char-broiler models feature cast iron “H” pattern burners, one for each 12˝ increment; griddles are rated at 20,000 BTU ea. & char-broilers at 25,000 ea. Optional 35,000 BTU “H” char-broiler burners available. 18˝ and 30˝ griddle & char broiler sections feature 2 and 4 straight burners respectively; griddles are rated at 18,000 BTU ea. & char-broilers at 20,000 ea. Open burners are cast iron without gaskets, rated at 24,000 BTU’s and feature a large 7˝ “star” flame pattern.

RADIANTS:

Char-broiler radiants are either lava rock or heavy duty angle iron, inverted “V” type for superior uniform heating temperature. “V” type radiants are easily removable for cleaning.

OPEN TOP GRATES:

Open burner grates are 12˝ x 12˝ solid cast iron with spillover bowl that also reflects heat to the cooking surface for added efficiency and designed for easy movement of pots across top sections. GRIDDLE PLATE: Highly polished to minimize food sticking. ¾˝ thick plate is standard, 1˝ thick is available. 4˝ high splash guard is standard. Higher sides are also available. 21¼˝ deep cooking surface with front cold zone grease trough. Grease drain slot is 3.5˝ x 1˝ and feeds into a seamless, deep, removable grease drawer.

ACCESSORIES & OPTIONS:

Thermostats, safety pilots, 1˝ thick plates, grill scrapers, spatulas, cleaning supplies, chrome & grooved griddle plates, safety pilot controls, gas hoses, carrying handles, knob protectors and matching equipment stands.
