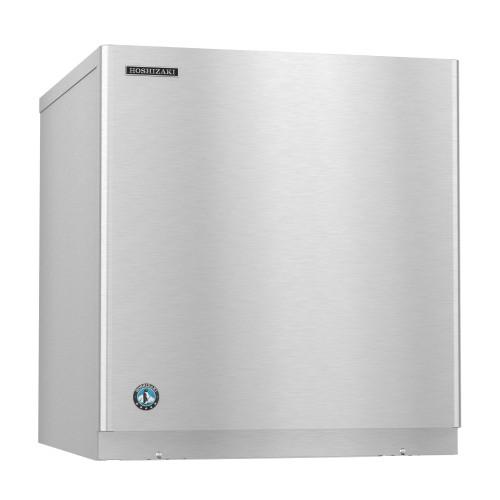

Hoshizaki KMD-410MAJ/DB-130H 22(w) inch 418lb/24hr Crescent Cuber Ice Maker with Dispenser Bin – 130lb Storage and Adapter Kits, Ice-Cooled, 115v/60/1, NSF Listed

Hoshizaki KMD-410MAJ/DB-130H 22(w) inch 418lb/24hr Crescent Cuber Ice Maker with Dispenser Bin – 130lb Storage and Adapter Kits, Ice-Cooled, 115v/60/1, NSF Listed

CRESCENT CUBER ICE MAKER AND DISPENSER BIN Model No: KMD-410MAJ/DB-130H

From the Manufacturer

Ice Maker Details

• Air-Cooled
• Dimensions: 22-1/4″ W x 24-1/8″ D x 24″ H
• Up to 418 lbs of ice produced per 24 hours
• Mount 2 units side-by-side for 2x the ice production
• Produces crescent shaped ice cubes
• Durable stainless steel exterior
• Compatible bins & dispensers, sold separately: B-250, BD-300, B-500, B-700, B-800, B-900, DB-130H
• EverCheck™ alert system
• CycleSaver™ design
• Stainless steel evaporator
• R-404A refrigerant (1 lbs. 0.9 oz. / 479 g)
• Heat Rejection:5500 BTU/hr
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 104 – 127V
• 8.2 amps (20 Amp Max fuse)
• 5.7 kwh/100 lbs.@ 90/70
• Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
• Clean ice and easy maintenance lead to longer unit life span
• Three Years: Parts & Labor warranty on entire machine.
• Five Years: Parts & Labor warranty on evaporator.

• Made in USA

Dispenser Bin

• DB-130H, 22″ W Hotel/Motel Ice Dispenser with 130 lbs Capacity
• Stainless Steel Exterior

Bin Kits

• HS-5424 Top Kit, for use with KMD-410 on DB-130 dispenser

(Model may differ from images shown)
