Imperial® IR-8 48 inch(w) (8)Open Burner(s) with (2) Space Saver Oven(s) Restaurant Range, Natural Gas, 310k Total BTU/Hr, NSF Listed

Imperial® IR-8 48 inch(w) (8)Open Burner(s) with (2) Space Saver Oven(s) Restaurant Range, Natural Gas, 310k Total BTU/Hr, NSF Listed

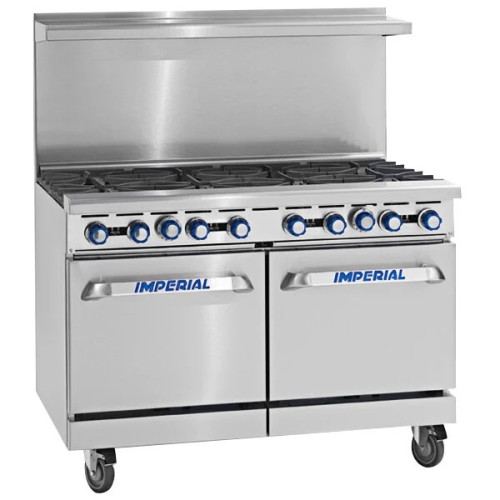

(8)GAS BURNER(S) RESTAURANT RANGE WITH (2)OVENS Model No: IR-8 (shown with optional casters)

OPEN BURNERS

• PyroCentric™ 32,000 BTU (9 KW) anti-clogging burner with a 7,000 BTU/hr. (2 KW) low simmer feature. Two rings of flame for even heating.
• Burners are anti-clogging and lift-off and separate for easy cleaning. No gaskets or screws.
• Cast iron PyroCentric burners are standard on all IR Series Ranges.
• One standing pilot per burner for instant ignition.


GRATES

• Front grates measure 12” x 12” (305 x 279 mm). Back grates are 12” x 13” (305 x 330 mm).
• Back grates are sized for positioning large stock pots directly over burner and feature a hot air dam.
• Grates are cast iron for a long service life.
• All stainless steel upper burner box, top grate supports front and rear.
• Pots slide easily from section to section and onto landing ledge.

STANDARD OVENS

• Both Space Saver and Chef Depth (XB) ovens are available.
• Linear burner provides even heating throughout the oven.
• Space Saver output is 27,000 BTU (8KW), Chef Depth is 35,000 BTU (10 KW).
• Unique burner baffle distributes heat flow to provide even temperatures throughout the oven cavity.
• Exclusive heat deflector reflects heat into the oven, not the floor.100% safety pilot.
• Space Saver interior is 20” w x 26” d x 14” h (508 w x 660 d x 356 h mm). Chef Depth interior is 26-1/2” w x 26” d x 14” h (673 w x 660 d x 356 h mm) and accommodates 18” x 26” (457 x 660 mm) sheet pans left-to-right and front-to-back.
• Porcelainized sides, rear, deck and door lining for easy cleaning. Heavy duty door hinge.
• Stamped inner door liner provides extra strength while optimizing heat retention.
• One chrome oven rack is included.
