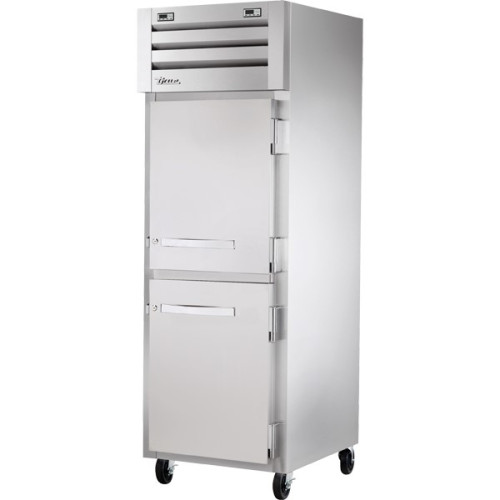

True STA1DTA-2HS-HC 27-1/2(w) inch (2)Half Solid Door(s) Top Mount Reach-In Upright Dual Temperature Refrigerator/Freezer, (3)Shelve(s), Casters, 1/10+1/4hp, 115v/60/1, UL Listed

True STA1DTA-2HS-HC 27-1/2(w) inch (2)Half Solid Door(s) Top Mount Reach-In Upright Dual Temperature Refrigerator/Freezer, (3)Shelve(s), Casters, 1/10+1/4hp, 115v/60/1, UL Listed

REACH-IN DUAL TEMPERATURE REFRIGERATOR/FREEZER Model No: STA1DTA-2HS-HC

From the Manufacturer

REFRIGERATION SYSTEM

• Equipped with two, independent, factory engineered, self-contained, capillary tube refrigeration systems using environmentally friendly environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & three (3) global warming potential (GWP).
• Freezer located in top section; refrigerator on bottom.
• High capacity, factory balanced refrigeration system that maintain colder standard temperatures for the best in food preservation. Refrigerator holds 33°F to 38°F (.5°C to 3.3°C); freezers holds -10°F (-23.3°C).
• State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
• Top mounted refrigeration system with evaporator positioned out of food zone to maximize capacity.
• Freezer features automatic defrost system, time-initiated, timeterminated.
• Automatic evaporator fan motor delay during defrost cycle.

CABINET CONSTRUCTION

• Insulation - entire cabinet structure and solid door are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
• 5" (127 mm) diameter plate castors - locks provided on front set.

DOORS

• Lifetime guaranteed bolt style door locks standard.
• Lifetime guaranteed heavy duty all metal working door handles.
• Positive seal self-closing doors with 120° stay open feature. Lifetime guaranteed external cam lift door hinges, four (4) per door section.
• Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.

LIGHTING

• LED interior lighting, safety shielded.

MODEL FEATURES

• Two (2) exterior digital temperature displays, one for refrigerator section and one for freezer.
• Evaporator epoxy coated to eliminate the potential of corrosion
• Curb mounting ready.
• NSF/ANSI Standard 7 compliant for open food product.

ELECTRICAL

• Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included

WARRANTY

7 Year Labor, 7 Year Parts, 7 Year Compressor

OPTIONAL FEATURES/ ACCESSORIES (upcharge & lead times may apply)

• 6" (153 mm) standard legs.
• 6" (153 mm) seismic/flanged legs.
• 6" (153 mm) stainless steel legs.
• Field reversible hinge.
• Additional shelves.
• Stainless back. (STR, STA, STG)
• Security package.

SHELVING KIT OPTIONS

• STR series kits factory installed at no charge. STA & STG series kits field installed, upcharge applies, lead times may apply.
• Kit #1: Nine (9) sets of #1 type tray slides and pilasters (field installed), bottom support of one (1) 18"L x 26"D (458 mm x 661 mm) pan or two (2) 14"L x 18"D (356 mm x 458 mm) pans.
• Kit #2: Not available for this model.
• Kit #3: Six (6) sets of universal type tray slides and pilasters (field installed), bottom support of one (1) 18"L x 26"D (458 mm x 661 mm) pan, two (2) 14"L x 18"D (356 mm x 458 mm) pans or two (2) 12"L x 20"D (305 mm x 508 mm) pans.
• Kit #4: Three (3) chrome shelves 265/16"L x 219/16"D (669 mm x 548 mm). Optional wall mounted shelf support pilasters (field installed) with four (4) shelf clips per shelf available; adjustable on 1/2" (13 mm) increments (must order at time of cabinet order).
• Additional kit option components available individually


(Model may differ from images shown)
