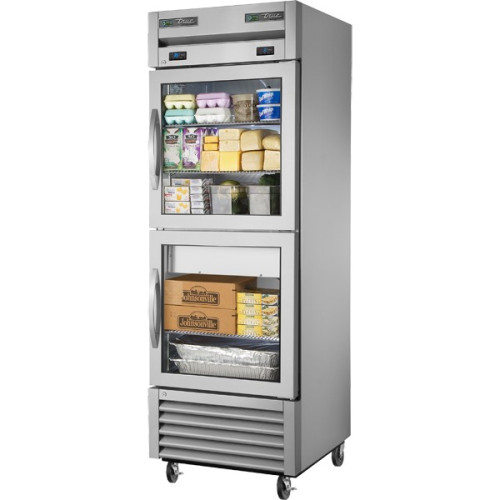

True T-23DT-G-HC~FGD01 27 inch wide (2)Half Glass Door(s) Bottom Mount Reach-In Upright Dual Temperature Refrigerator/Freezer, (3)Shelve(s), Casters, 1/10+1/2hp, 115v/60/1, UL Listed
True T-23DT-G-HC~FGD01 27 inch wide (2)Half Glass Door(s) Bottom Mount Reach-In Upright Dual Temperature Refrigerator/Freezer, (3)Shelve(s), Casters, 1/10+1/2hp, 115v/60/1, UL Listed
(2)HALF GLASS DOOR(S) BOTTOM MOUNT REACH-IN DUAL TEMPERATURE REFRIGERATOR/FREEZER Model No: T-23DT-G-HC~FGD01
From the Manufacturer
DESIGN
- True’s glass door reach-in’s are designed with enduring quality that protects your long term investment.
- True’s commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, lower utility costs, exceptional food safety and the best value in today’s food service marketplace.
REFRIGERATION SYSTEM
- Equipped with two, independent, factory engineered, self-contained, capillary tube systems, using environmentally friendly R290 hydro carbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
- Refrigerator located in top section; freezer on bottom.
- High capacity, factory balanced refrigeration system maintains colder standard temperatures for best in food preservation. Refrigerator holds 33°F to 38°F (.5°C to 3.3°C); freezers holds -10°F (-23.3°C).
- State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
- Bottom mounted condensing units positioned for easy cleaning. Compressors run in coolest and most grease free area of the kitchen. Allows for storage area on top of unit.
- Automatic freezer defrost system is timeinitiated, time-terminated.
CABINET CONSTRUCTION
- Exterior - Stainless steel front. Anodized quality aluminum ends. Corrosion resistant GalFan coated steel back.
- Interior - attractive, clear coated aluminum liner. Stainless steel floor with coved corners.
- Insulation - entire cabinet structure is foamedin-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
- Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
- Frame rail fitted with 4" (102 mm) diameter stem castors - locks provided on front set.
DOORS
- “Low-E”, double pane thermal glass assembly in refrigerator door. Triple pane thermal glass assembly in freezer door.
- Extruded stainless steel frames. Door locks standard.
- Each door fitted with 15" (381 mm) long extruded aluminum handle.
- Positive seal self-closing doors. Lifetime guaranteed door hinges and torsion type closure system.
- Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.
SHELVING
- Three (3) adjustable, heavy duty PVC coated wire shelves 22 7/8"L x 231/4"D (582 mm x 591 mm). Four (4) chrome plated shelf clips included per shelf.
- Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2" (13 mm) increments.
LIGHTING
- LED interior lighting provides more even lighting throughout the cabinet. Safety shielded.
MODEL FEATURES
- Two (2) exterior digital temperature displays, one for refrigerator section and one for freezer.
- Evaporators are epoxy coated to eliminate the potential of corrosion.
- Minimum wattage heater in cabinet frame and freezer door.
- NSF/ANSI Standard 7 compliant for open food product.
ELECTRICAL
- Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
WARRANTY
7 Year Labor, 7 Year Parts, 7 Year Compressor
OPTIONAL FEATURES/ACCESSORIES Upcharge and lead times may apply.
❑ 6" ( 153 mm) standard legs.
❑ 6" ( 153 mm) standard or seismic/flanged legs.
❑ 21/2" (64mm) castors.
❑ Additional shelves.
❑ Half door bun tray racks (refrigerator section only). Each holds up to eleven 18"L x 26"D (458 mm x 661 mm) sheet pans (sold separately).
❑ Novelty baskets.
WARNING: Attention
California Residents - Prop 65 Warning www.P65Warnings.ca.gov
Refrigeration | |
Refrigeration Types : | Refrigerator/Freezer |
Compressor Mount : | Bottom Mount |
Door Styles and Types | |
Door Styles : | Swing |
Door Types : | Glass |
Number of Sections and Doors | |
Number of Door(s) : | (2) Half(s) |
Number of Section(s) : | 1 |
Number of Shelve(s) : | 3 |
Casters : | Yes |
Electrical | |
Voltage : | 115 |
Hertz : | 60 |
Phase : | 1 |
Horse Power : | 1/10 + 1/2 |
Plug Configuration | NEMA 5-15P |
Certification and Origin | |
Listed : | UL |
Origin : | USA |
Dimensions | |
Dimension (l"xw"xh") : | 27 x 29-3/4 x 78-3/8 |
External Links
Thumb | Link Name |
![]() |
Technical Specs |
$9,812.13
