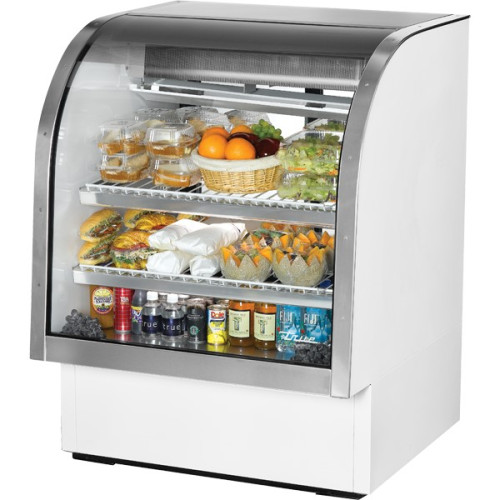

True TCGG-36-HC-LD 36-1/4 inch wide (2)Door(s) Curved Glass Solid-End Refrigerated Deli Case, White, (2)Shelve(s), 1/3hp, 115v/60/1, UL Listed

True TCGG-36-HC-LD 36-1/4 inch wide (2)Door(s) Curved Glass Solid-End Refrigerated Deli Case, White, (2)Shelve(s), 1/3hp, 115v/60/1, UL Listed

(2)DOOR(S) REFRIGERATED CURVED GLASS SOLID-END DELI CASE Model No: TCGG-36-HC-LD

From the Manufacturer

DESIGN

• True’s curved glass deli display case combines efficient, high volume merchandising and exceptional refrigeration with an elegant curved glass front for sophisticated presentation of deli products.

Gravity coil refrigeration system guarantees the freshest display of meats, cheeses and deli products.

REFRIGERATION SYSTEM

• Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & three (3) global warming potential (GWP).
• Extra large evaporator coil balanced with higher horsepower compressor and large condenser maintains 38°F to 40°F (3.3°C to 4.4°C). • High humidity gravity coil refrigeration system. Ideally suited for deli meats, cheeses and salads.
• Condensing unit located behind panel in back of unit. Entire system slides out for easy cleaning and maintenance.
• Automatic defrost system; time-initiated, time-terminated.

CABINET CONSTRUCTION

• Exterior - durable and permanent no peel or chip white powder coated cold rolled steel with stainless steel top and trim.
• Interior - White aluminum sides and top with stainless steel floor. • Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
• Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
• Frame rail fitted with leg levelers.

CURVED FRONT DISPLAY GLASS

• Insulated double panel glass provides maximum insulation value for greater efficiency and energy savings. Both panes are tempered for safety.

REAR DOORS

• "Low-E", double pane thermal glass inserts with mitered plastic channel frames.
• Each door fitted with 12" (305 mm) long black aluminum handle.
• Self-closing doors. Sliding doors ride on stainless steel V-Channel with stainless steel bearings for smooth, even, positive closure. Doors fit within plastic channel frame.

SHELVING

• Two (2) adjustable, lighted, cantilevered white heavy duty PVC coated wire shelves 30 3/8" L x 221/2" D (772 mm x 572 mm). Shelving system is cantilevered with adjustable angle to maximize presentation.

LIGHTING

• Cabinet equipped with three LED (3) light sources for maximum product display; two (2) shelf mounted and one (1) cabinet mounted.

MODEL FEATURES

• Evaporator is epoxy coated to eliminate the potential of corrosion.
• Four (4) amp exterior scale receptacle.
• NSF/ANSI Standard 7 compliant for open food product.

ELECTRICAL

• Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.

RECOMMENDED OPERATING CONDITIONS

• TCGG refrigerated models are designed to operate in an environment where temperature and humidity do not exceed 75°F (24°C) and 55% relative humidity.

WARRANTY

• 7 Year Labor, 7 Year Parts, 7 Year Compressor

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❑ 6" (153 mm) standard legs.

❑ 6" (153 mm) seismic/flanged legs.

❑ 21/2" (64 mm) diameter castors.

❑ 4" (102 mm) diameter castors.

❑ Ratchet locks.

❑ Additional lighted shelf (maximum of 3 shelves per cabinet).

❑ Non-lighted shelves.
