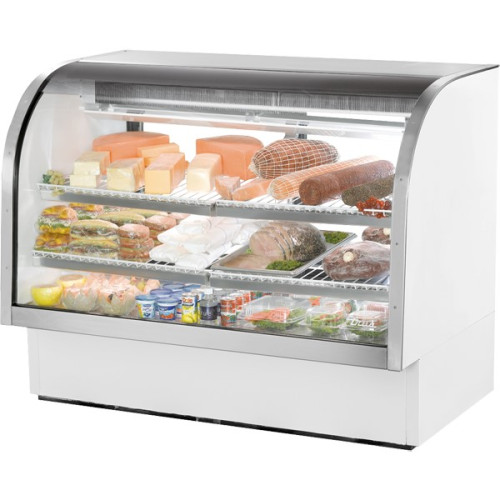

True TCGG-60-HC-LD 60-1/4 inch wide (2)Door(s) Curved Glass Solid-end Refrigerated Deli Case, White, (4)Shelve(s), 1/2hp, 115v/60/1, UL Listed

True TCGG-60-HC-LD 60-1/4 inch wide (2)Door(s) Curved Glass Solid-end Refrigerated Deli Case, White, (4)Shelve(s), 1/2hp, 115v/60/1, UL Listed

(2)DOOR(S) REFRIGERATED CURVED GLASS SOLID-END DELI CASE Model No: TCGG-60-HC-LD

From the Manufacturer

DESIGN

• True’s curved glass deli display case combines efficient, high volume merchandising and exceptional refrigeration with an elegant curved glass front for sophisticated presentation of deli products. • Gravity coil refrigeration system guarantees the freshest display of meats, cheeses and deli products.

REFRIGERATION SYSTEM

• Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & three (3) global warming potential (GWP).
• Extra large evaporator coil balanced with higher horsepower compressor and large condenser maintains 38°F to 40°F (3.3°C to 4.4°C). • High humidity gravity coil refrigeration system. Ideally suited for deli meats, cheeses and salads.
• Condensing unit located behind panel in back of unit. Entire system slides out for easy cleaning and maintenance. • Automatic defrost system; time-initiated, time-terminated.

CABINET CONSTRUCTION

• Exterior - durable and permanent no peel or chip white powder coated cold rolled steel with stainless steel top and trim.
• Interior - White aluminum sides and top with stainless steel floor.
• Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP). • Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
• Frame rail fitted with leg levelers.

CURVED FRONT DISPLAY GLASS

• Insulated double pane glass provides maximum insulation value for greater efficiency and energy savings. Both panes are tempered for safety.

REAR DOORS

• "Low-E", double pane thermal glass inserts with mitered plastic channel frames.
• Each door fitted with 12" (305 mm) long molded plastic handle.
• Self-closing doors, efficient counter balanced weight system for smooth, even, positive closure. Sliding doors ride on stainless steel V-channel with stainless steel bearings. Doors fit within plastic channel frame.

SHELVING

• Four (4) adjustable, lighted, white heavy duty PVC coated wire shelves 221/2" L x 27 7/8" D (572 mm x 709 mm). Shelving system is cantilevered with adjustable angle to maximize presentation.

LIGHTING

• Cabinet equipped with five LED (5) light sources for maximum product display; four (4) shelf mounted and one (1) cabinet mounted.

MODEL FEATURES

• Evaporator is epoxy coated to eliminate the potential of corrosion.
• Four (4) amp exterior scale receptacle.
• NSF/ANSI Standard 7 compliant for open food product.

ELECTRICAL

• Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.

RECOMMENDED OPERATING CONDITIONS

• TCGG refrigerated models are designed to operate in an environment where temperature and humidity do not exceed 75°F (24°C) and 55% relative humidity.

WARRANTY

• 7 Year Labor, 7 Year Parts, 7 Year Compressor

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❑ 6" (153 mm) standard legs.

❑ 6" (153 mm) seismic/flanged legs.

❑ 21/2" (64 mm) diameter castors.

❑ 4" (102 mm) diameter castors.

❑ Ratchet locks.

❑ Additional lighted shelves.

❑ Non-lighted shelves.
