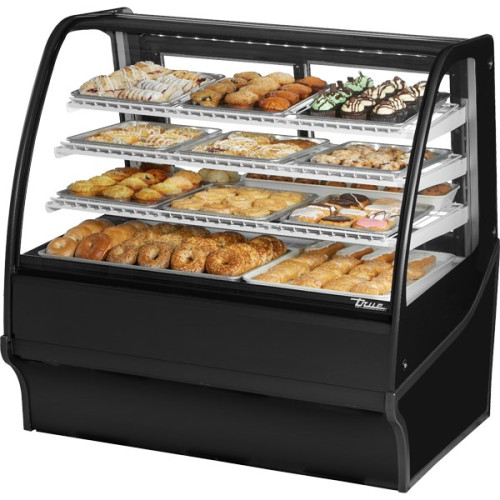

(2)DOOR(S) CURVED GLASS GLASS-END DRY CASE Model No: TDM-DC-48-GE/GE-B-W

From the Manufacturer

DESIGN

  • True’s "dry" display case combines efficient, high volume merchandising with an elegant curved glass front for sophisticated presentation of high end desserts and pastries.
  • Designed to provide an attractive companion to our TDM-R "refrigerated" display merchandiser. Please note: If units are banked together, because of side panel, a 1/2" gap will remain between units.

CABINET CONSTRUCTION

  • Exterior - powder coated FDA black rounded front and back, black aluminum aesthetic side and front panels. Color options available (upcharge may apply) - white or stainless. • Curved glass front and side glass panels.
  • Interior - powder coated FDA white over CRS material. Color options available (upcharge may apply) - black or stainless.
  • Insulation - entire cabinet structure is foamed-inplace using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and 0.02 global warming potential (GWP).
  • Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
  • Frame rail fitted with leg levelers.

CURVED FRONT DISPLAY GLASS

  • Curved glass front and side panels are single pane tempered glass. Front glass opens from closed to fully open to provide extra large viewing area to maximize product presentation while allowing full frontal access.

REAR DOORS

  • Two (2) rear sliding glass doors for back access.
  • Each door fitted with 12" (305 mm) long aluminum handle. • Sliding doors ride on stainless steel V-channel with stainless steel bearings. Doors fit within plastic channel frame.

SHELVING

  • Three (3) adjustable heavy duty PVC coated wire shelves standard. • Each shelf supports a maximum weight of 150 lbs. (69 kg).

PAN CAPACITY

  • Cabinet holds four (4) 18"L x 26"D (458 mm x 661 mm) display pans, two (2) 9"L x 26"D (229 mm x 661 mm) display pans and six (8) 12"L x 18"D (305 mm x 458 mm) display pans. Pans supplied by others. LIGHTING • LED interior lighting, two (2) clips underneath shelf to keep wires in place. Safety shielded.

MODEL FEATURES

  • Front glass swings Up for easy cleaning access.
  • NSF/ANSI Standard 2 compliant for open food product.

ELECTRICAL

  • Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.

WARRANTY

  • 7 Year Labor, 7 Year Parts, 7 Year Compressor

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❑ 220-240V/50Hz

❑ 220V/60Hz

❑ White exterior

❑ Stainless steel exterior

❑ Custom exterior colors (contact factory for details)

❑ Black interior

❑ Stainless steel interior

❑ Black wire shelves

❑ Chrome plated wire shelves

❑ Stainless mezzanine shelves

  WARNING: Attention California Residents - Prop 65 Warning www.P65Warnings.ca.gov

Number of Sections and Doors
Number of Shelve(s) : 3
Casters : None
Electrical
Voltage : 115
Hertz : 60
Phase : 1
Certification and Origin
Listed : UL
Origin : USA
Dimensions
Dimension (l"xw"xh") : 48-1/4 x 39 x 49-1/8
Material
Color : Black, White
Capacity
Quantity : 1
Usage
Usage Types: Dry Display Case
Configuration
Style : Curved Glass, Glass-End
External Links
Thumb Link Name
Technical Specs
User Manual
Warranty & Service

Write a review

$6,105.28
  • Stock: 1
  • Model: TDM-DC-48-GE/GE-B-W
  • SKU: 182-TDM-DC-48-GE/GE-B-W
  • MPN: TDM-DC-48-GE/GE-B-W
