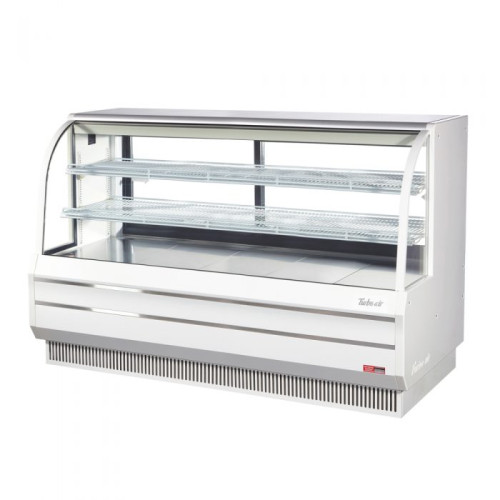

Turbo Air TCGB-72DR-W 72-1/2 inch wide, Curved Glass Non-Refrigerated Bakery Case, White Exterior, 23.2 Cu.ft, (2) Shelve(s), 115v, ETL Listed
CURVED GLASS NON-REFRIGERATED BAKERY DISPLAY CASE
Model No: TCGB-72DR-W
FEATURES & BENEFITS
Attractive, elegant, glass sided Euro design
Curved tempered front glass and minimal frame provide full product visibility to optimize display effects. Its elegant contemporary euro design will not only enhance any store atmosphere but also will keep product presentation at its best and most beautiful.
High-density polyurethane insulation
The entire cabinet structure is foamed-in-place using high density, CFC free polyurethane insulation.
Low-E coated double pane glass is tempered for safety
Heavy duty, white PE coated wire shelves
Cantilever wired shelves adjustable up and down, tilted
LED interior lighting under each shelf
Stainless steel floor and airflow grille
Sliding rear doors for product loading & unloading
WARRANTY
- 2 Year Parts and Labor Warranty
STANDARD FEATURES
Bolt height adjustable up to 2-3/4"
White and black color come standard
OPTIONAL ACCESSORIES
- 1.6” caster: CAS16WBT00 (non-brake)
- 4” caster, ½” diameter & 13 TPI: G8F6500101 (non-brake), G8F6500201 (w/ brake)
- 6” leveling seismic leg (½”, 13 TPI): 30221M0700
WARNING: Attention California Residents - Prop 65 Warning www.P65Warnings.ca.gov
Refrigeration | |
Refrigeration Types : | N/A |
Capacity : | 23.2 Cu.ft |
Number of Sections and Doors | |
Number of Shelve(s) : | 2 |
Casters : | N/A |
Electrical | |
Voltage : | 115 |
Hertz : | 60 |
Phase : | 1 |
Horse Power : | N/A |
Plug Configuration | NEMA 5-15P |
Certification and Origin | |
Listed : | ETL |
Origin : | Korea |
Dimensions | |
Dimension (l"xw"xh") : | 72-1/2 x 34-1/4 x 49-7/8 |
Material | |
Color : | White |
Capacity | |
Quantity : | 1 |
Usage | |
Usage Types: | Non-Refrigerated Bakery Case |
Configuration | |
Style : | Curved Glass |
